Pool Heat Pumps
Energy-efficient pool heating for residential and commercial pools. Available in R290, R32, and R410A refrigerants with titanium heat exchangers for saltwater compatibility.
| Series | Refrigerant | Power Range | Max COP | Phase | Highlight |
|---|---|---|---|---|---|
| E8 | R290 | 6–32kW | 18.5 | 1Ph | Eco refrigerant, Ultra-quiet 36dB |
| A8 | R32 | 8–32kW | 24.1 | 1Ph | Highest COP, Premium efficiency |
| H5 | R32 | 9–24kW | 16.0 | 1Ph | Full-inverter, Value choice |
| B5 | R32 | 5–18kW | 15.0 | 1Ph | Rear-Inlet, Side-Outlet, No Front Fan |
| D8 | R32 | 12–32kW | 16.0 | 3Ph | Three-phase, Large pools |
| C8 | R410A | 26–190kW | 6.0 | 3Ph | Commercial, On/Off, 190kW max |
R290 E8 Series · DC Inverter Full-Inverter
8 models · 1Ph · COP up to 18.5
R290
New
View Specs →

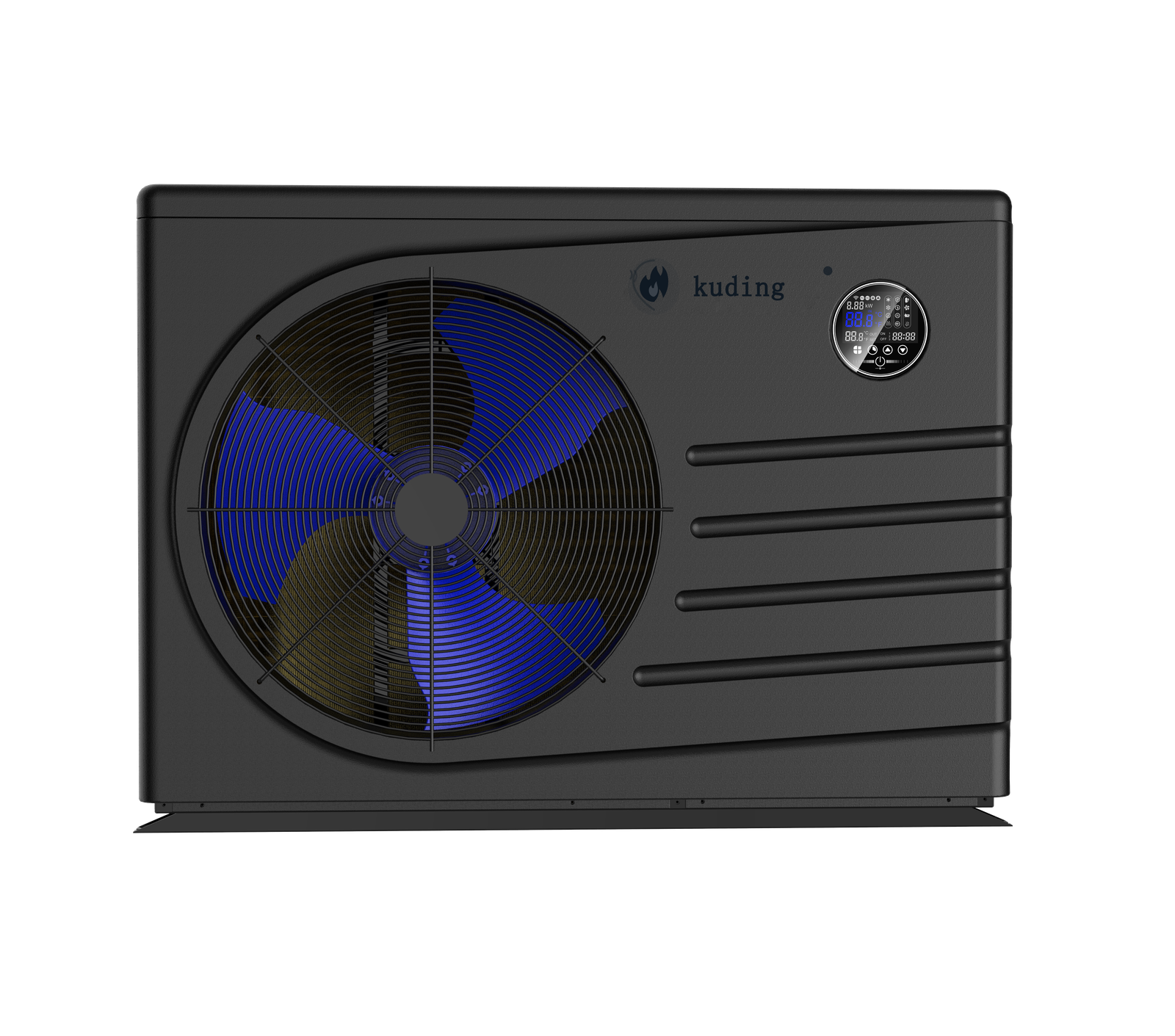

KD-010 · R290 E8 Series
Pool Heat Pump 6kW — R290 Eco
Next-gen R290 eco refrigerant pool heat pump with full DC inverter. Ultra-high COP 18.5, whisper-quiet 36dB. Titanium heat exchanger for salt & fresh water. Wi-Fi app control included.
COP 18.5Max COP
6.0kWHeating
36dBNoise
15–30m³Pool Size
| Refrigerant | R290 (Propane) |
| Heating Capacity | 6.0 kW |
| COP (A20/W27) | 18.5 |
| Power Supply | 220–240V / 50Hz / 1Ph |
| Max Power Input | 0.95 kW |
| Noise Level | 36 dB(A) |
| Heat Exchanger | Pure Titanium |
| Working Temp | -15°C ∼ 43°C |
| Pool Size | 15–30 m³ |
| Wi-Fi Control | Yes (App) |
| Compressor | DC Inverter |
| Dimensions (L×W×H) | 855×345×580 mm |
| Net Weight | 38 kg |
R290
View Specs →
KD-016 · R290 E8 Series
Pool Heat Pump 10kW — R290 Eco
R290 full-inverter pool heat pump for medium pools. COP up to 17.0, titanium heat exchanger, and ultra-quiet 38dB operation. Smart Wi-Fi control standard.
COP 17.0Max COP
10kWHeating
38dBNoise
25–50m³Pool Size
| Refrigerant | R290 (Propane) |
| Heating Capacity | 10 kW |
| COP (A20/W27) | 17.0 |
| Power Supply | 220–240V / 50Hz / 1Ph |
| Noise Level | 38 dB(A) |
| Heat Exchanger | Pure Titanium |
| Working Temp | -15°C ∼ 43°C |
| Pool Size | 25–50 m³ |
| Wi-Fi Control | Yes (App) |
R290
View Specs →
KD-024 · R290 E8 Series
Pool Heat Pump 16kW — R290 Eco
High-capacity R290 pool heat pump for large residential pools. COP up to 15.5, robust titanium heat exchanger, energy-saving inverter technology with Wi-Fi control.
COP 15.5Max COP
16kWHeating
40dBNoise
40–80m³Pool Size
| Refrigerant | R290 (Propane) |
| Heating Capacity | 16 kW |
| COP (A20/W27) | 15.5 |
| Power Supply | 220–240V / 50Hz / 1Ph |
| Noise Level | 40 dB(A) |
| Heat Exchanger | Pure Titanium |
| Working Temp | -15°C ∼ 43°C |
| Pool Size | 40–80 m³ |
R32 A8 Series · Premium Full-Inverter
8 models · 1Ph · COP up to 24.1
R32
Best Seller
View Specs →

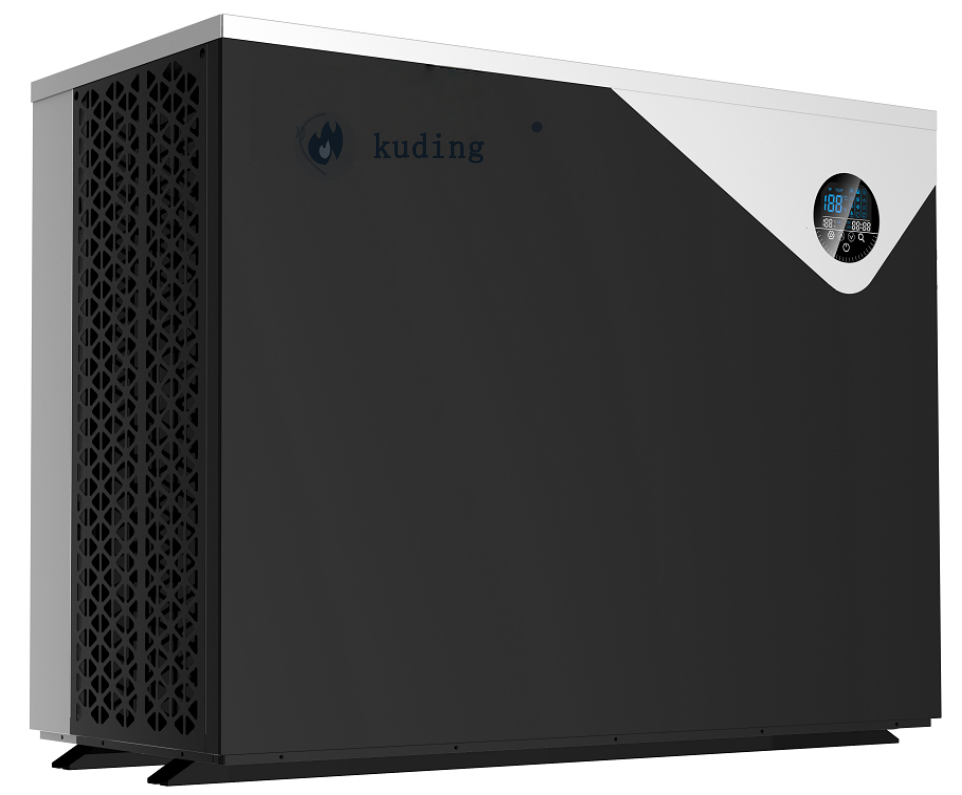

KD-010 · R32 A8 Series
Pool Heat Pump 6kW — Premium R32
Premium R32 full-inverter pool heat pump with industry-leading COP 24.1. Ultra-efficient, titanium exchanger, quiet operation, and smart Wi-Fi control.
COP 24.1Max COP
6kWHeating
38dBNoise
15–30m³Pool Size
| Refrigerant | R32 |
| Heating Capacity | 6 kW |
| COP (A20/W27) | 24.1 |
| Power Supply | 220–240V / 50Hz / 1Ph |
| Noise Level | 38 dB(A) |
| Heat Exchanger | Pure Titanium |
| Wi-Fi Control | Yes (App) |
R32
View Specs →
KD-024 · R32 A8 Series
Pool Heat Pump 16kW — Premium R32
High-capacity R32 pool heat pump. COP up to 20.0, suitable for larger pools. Full-inverter technology for energy savings up to 75%.
COP 20.0Max COP
16kWHeating
42dBNoise
40–80m³Pool Size
| Refrigerant | R32 |
| Heating Capacity | 16 kW |
| COP | 20.0 |
| Power Supply | 220–240V / 50Hz / 1Ph |
R32 H5 Series · Full-Inverter
4 models · 1Ph · 9–24kW
R32
View Specs →

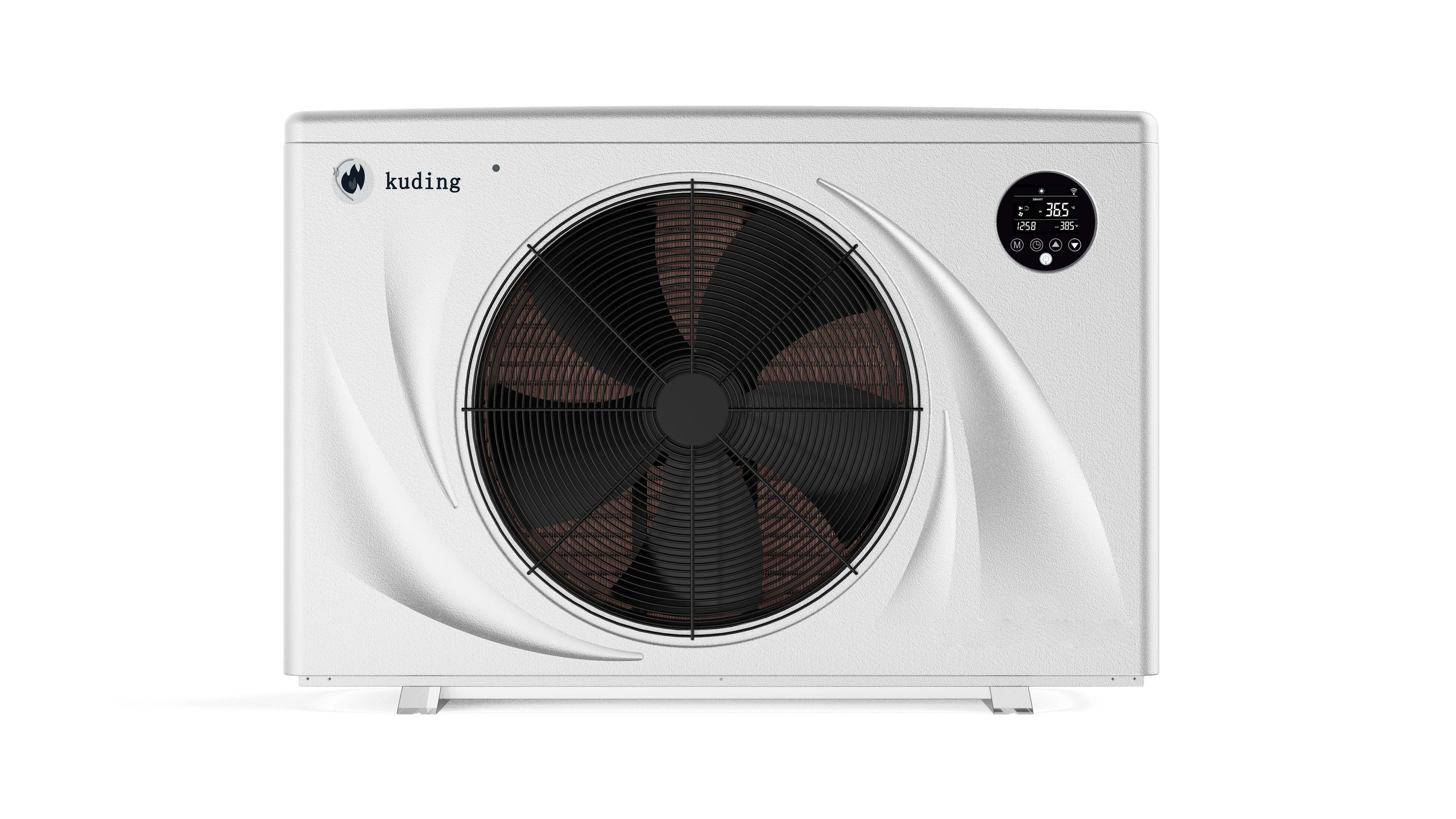

H5 Series · R32 Full-Inverter
H5 Pool Heat Pump 9–24kW
Full-inverter R32 pool heat pump series. COP up to 16.0, titanium heat exchanger, single-phase power. Smart Wi-Fi control included.
COP 16.0Max COP
9–24kWHeating
1PhPower
| Refrigerant | R32 |
| Heating Capacity | 9 / 12 / 16 / 24 kW |
| COP | Up to 16.0 |
| Power Supply | 220–240V / 50Hz / 1Ph |
| Heat Exchanger | Pure Titanium |
R32 B5 Series · Full-Inverter · Rear-Inlet Side-Outlet
4 models · 1Ph · 5–18kW
R32
View Specs →

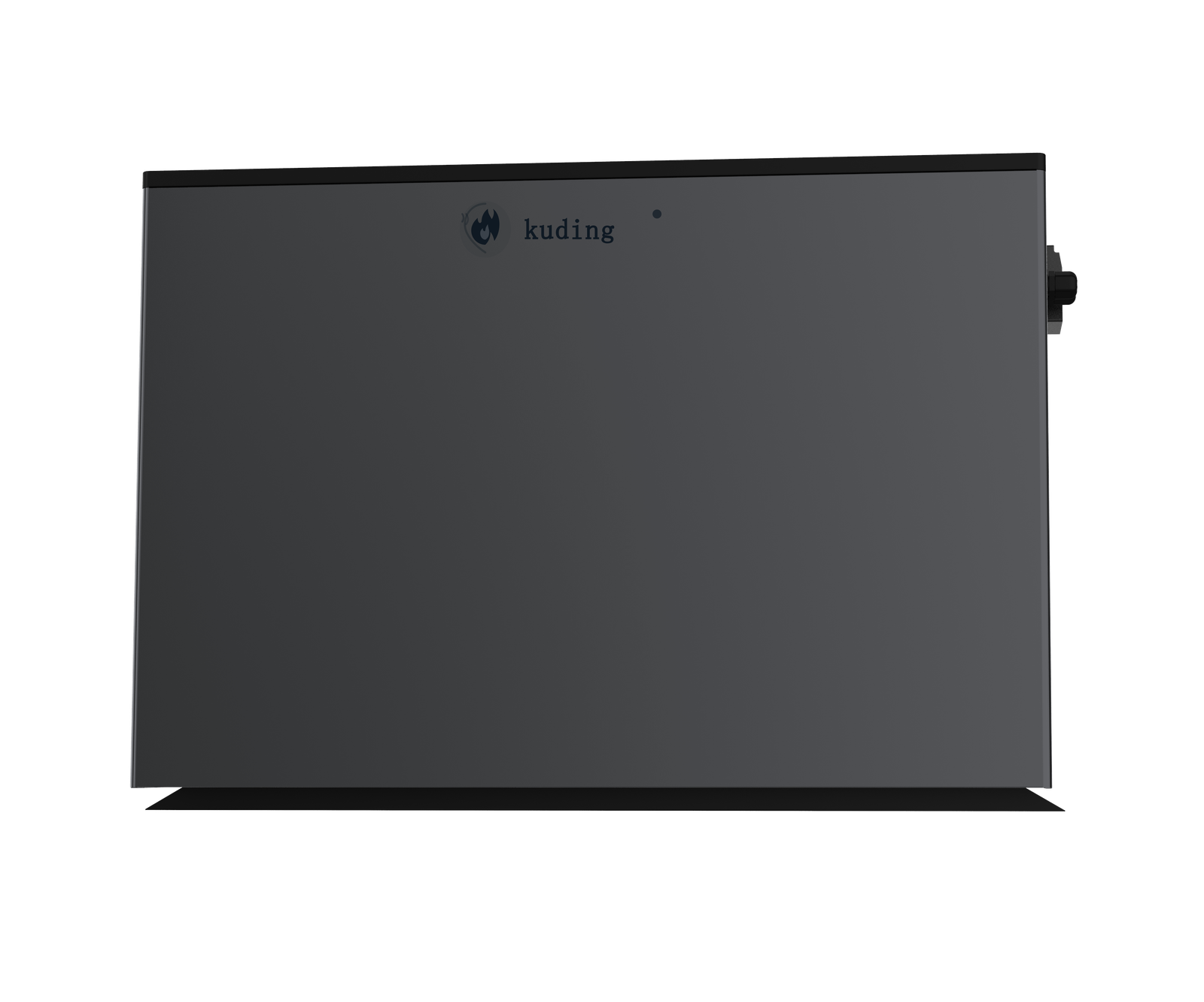

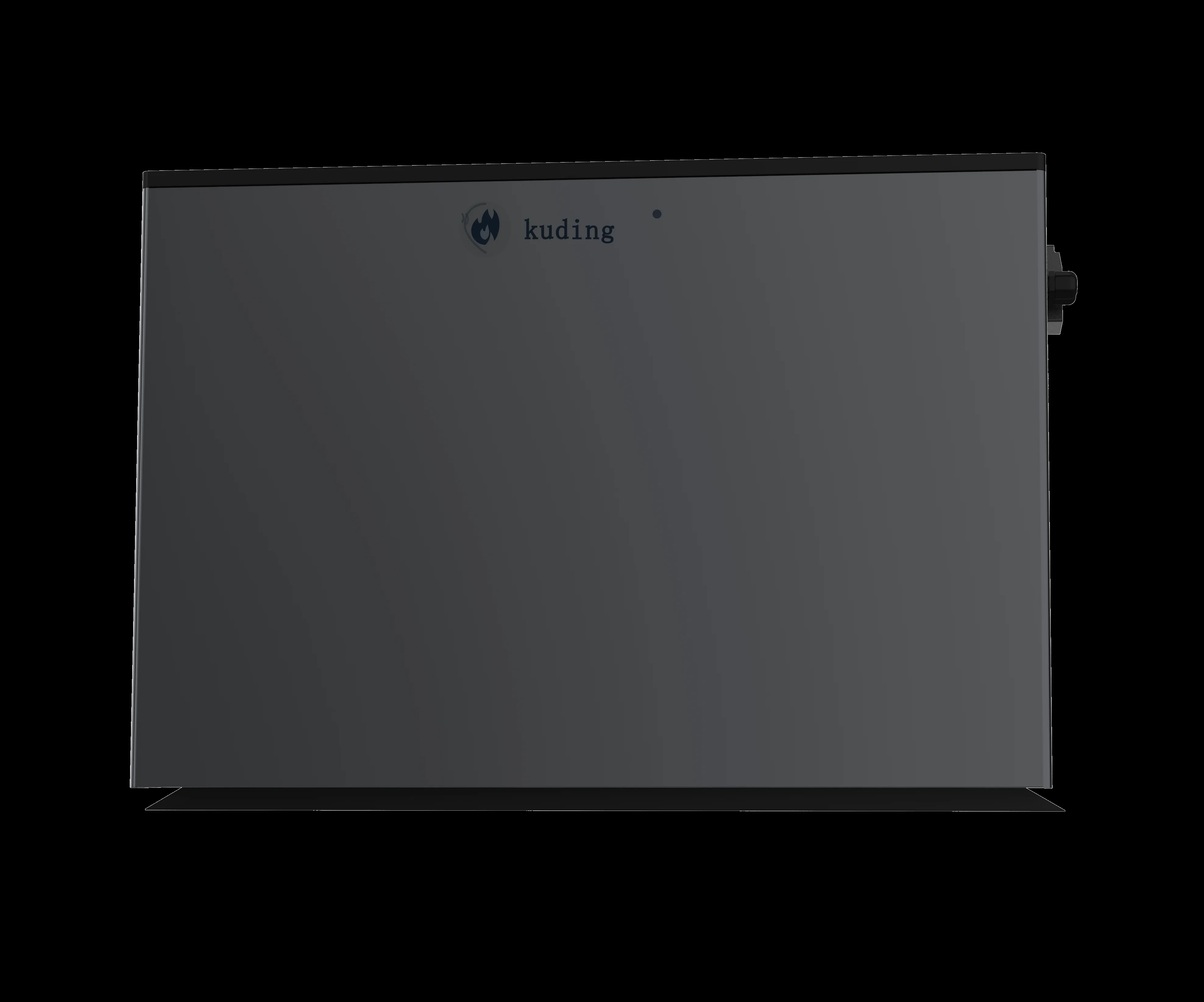

B5 Series · R32 Full-Inverter
B5 Pool Heat Pump 5–18kW
Full-inverter R32 pool heat pump with rear-inlet, side-outlet airflow design. No front fan for quieter operation and flexible installation against walls. COP up to 15.0, titanium heat exchanger.
COP 15.0Max COP
5–18kWHeating
1PhPower
| Refrigerant | R32 |
| Heating Capacity | 5 / 8 / 12 / 18 kW |
| COP | Up to 15.0 |
| Power Supply | 220–240V / 50Hz / 1Ph |
| Airflow Design | Rear-Inlet, Side-Outlet (No Front Fan) |
| Heat Exchanger | Pure Titanium |
R32 D8 Series · Full-Inverter 3Ph
4 models · 3Ph · 12–32kW
R32
View Specs →

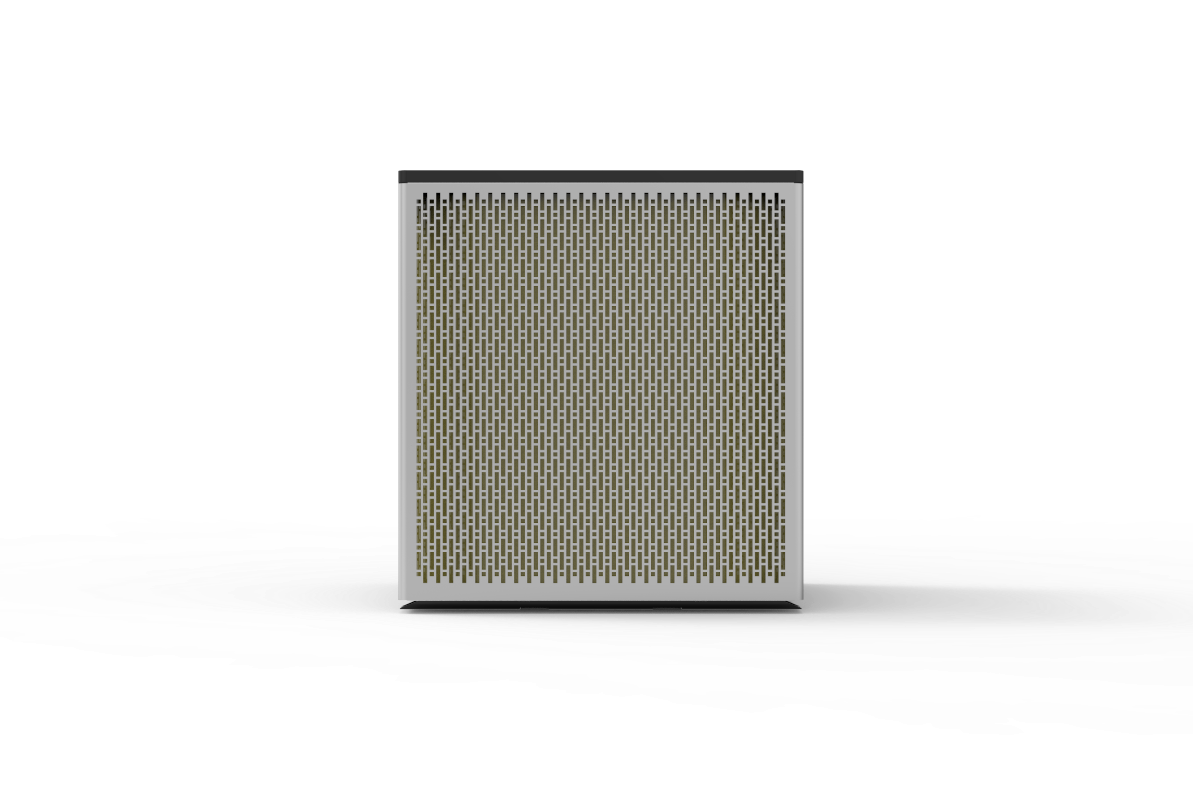

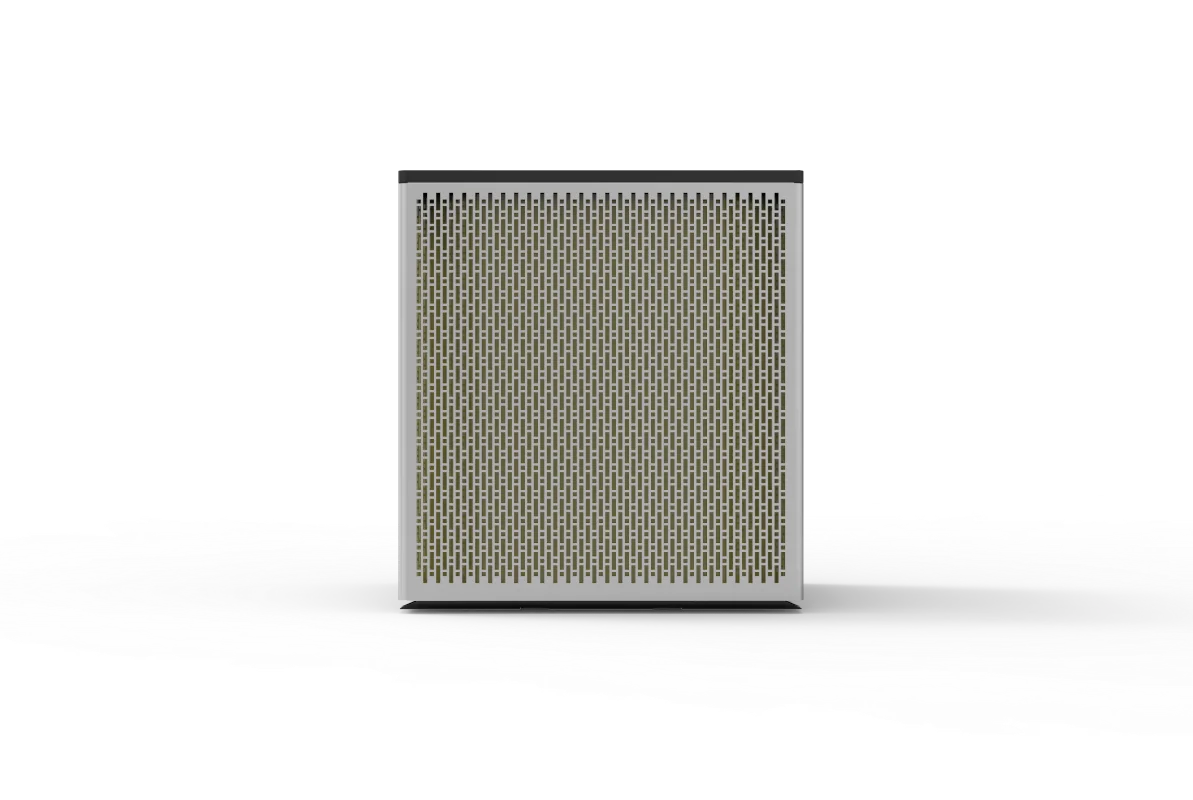

D8 Series · R32 Full-Inverter 3Ph
D8 Pool Heat Pump 12–32kW
Three-phase full-inverter R32 pool heat pump for large pools. COP up to 16.0, stable 380V power supply, high-performance titanium exchanger.
COP 16.0Max COP
12–32kWHeating
3PhPower
| Refrigerant | R32 |
| Heating Capacity | 12 / 16 / 24 / 32 kW |
| COP | Up to 16.0 |
| Power Supply | 380–415V / 50Hz / 3Ph |
R410A C8 Series · Commercial On/Off
10 models · 3Ph · 26–190kW
R410A
View Specs →

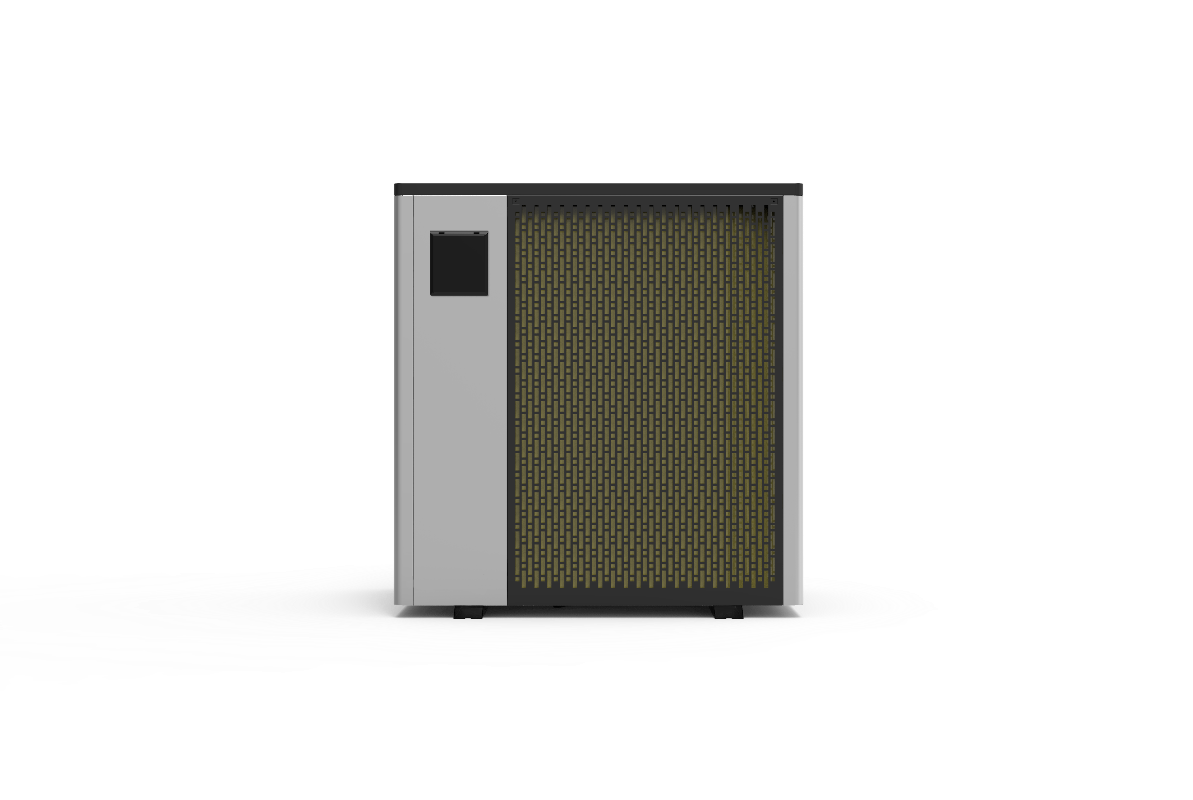

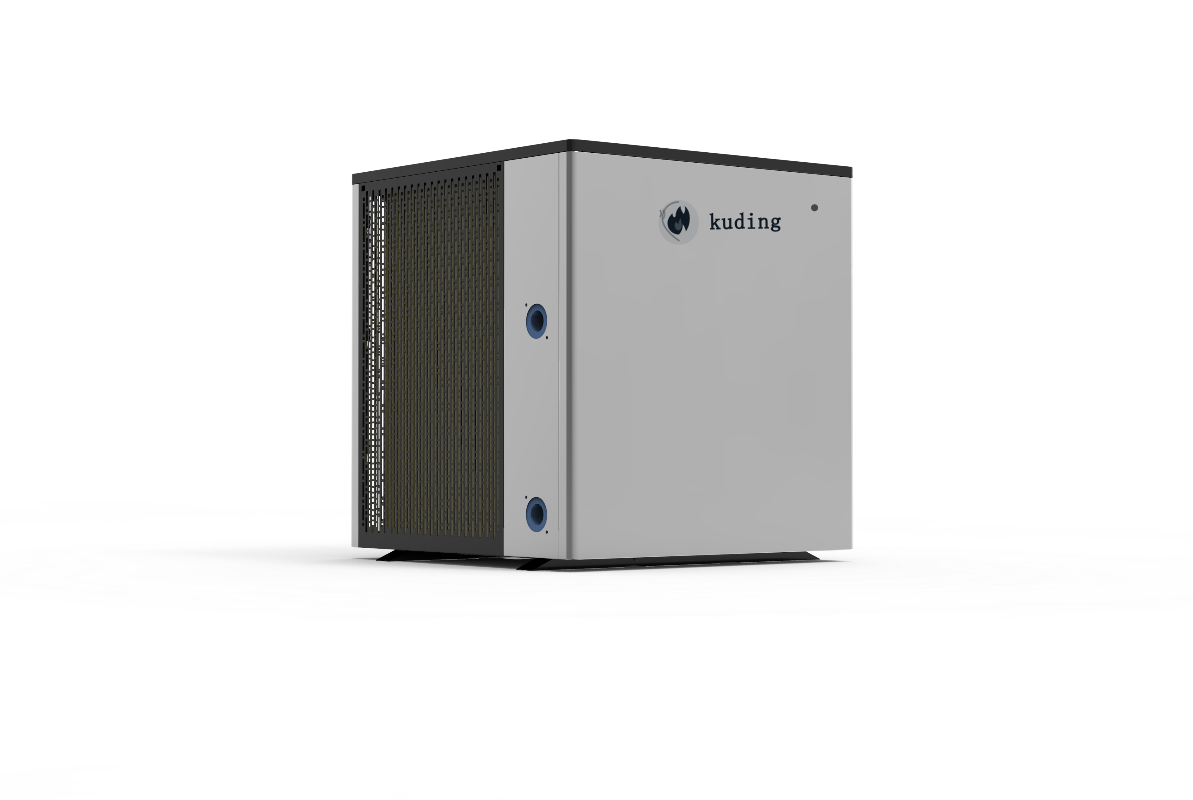

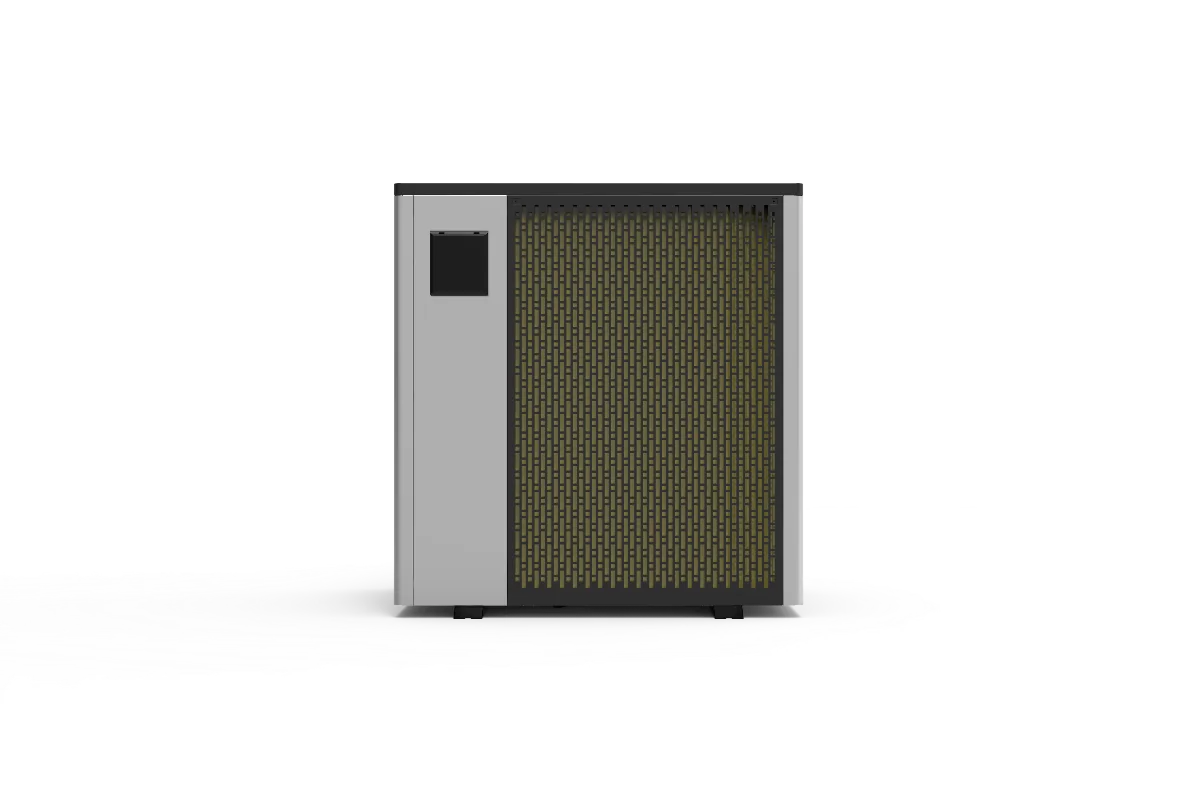

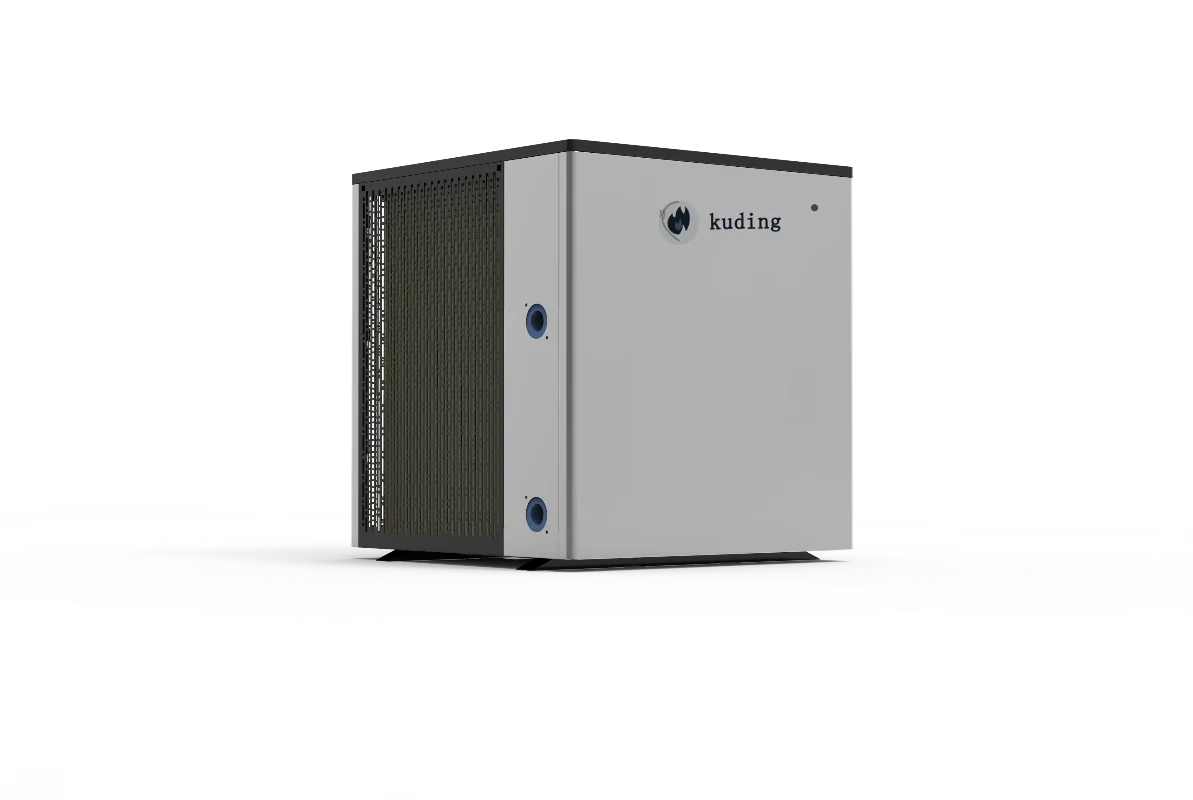

C8 Series · R410A Commercial
C8 Commercial Pool Heat Pump 26–190kW
Heavy-duty commercial pool heat pumps with R410A. COP up to 6.0, massive 26–190kW heating capacity. Designed for hotel resorts, water parks, and Olympic pools.
190kWMax Power
COP 6.0Efficiency
3PhPower
10 modelsOptions
| Refrigerant | R410A |
| Heating Capacity | 26 / 32 / 40 / 50 / 65 / 80 / 100 / 130 / 160 / 190 kW |
| COP | Up to 6.0 |
| Power Supply | 380–415V / 50Hz / 3Ph |
| Heat Exchanger | Pure Titanium |
| Application | Hotel, Resort, Water Park, Olympic Pool |
Heating Heat Pumps
R290 air-to-water heating heat pumps with A+++ energy rating. Built-in hydronic modules, ultra-quiet operation, and Mitsubishi Electric compressors for European homes.
| Series | Refrigerant | Power Range | Energy Rating | Highlight |
|---|---|---|---|---|
| H8A | R290 | 6–16kW | A+++ | Built-in hydronic module, all-in-one solution |
| H8B | R290 | 6–16kW | A+++ | Lightweight design, easy installation |
| C8 | R290 | 49–92kW | A+++ | Commercial, cascade system, large buildings |
H8A R290 Series · Built-in Hydronic Module
5 models · A+++ · 6–16kW
R290
Helios Pro
View Specs →

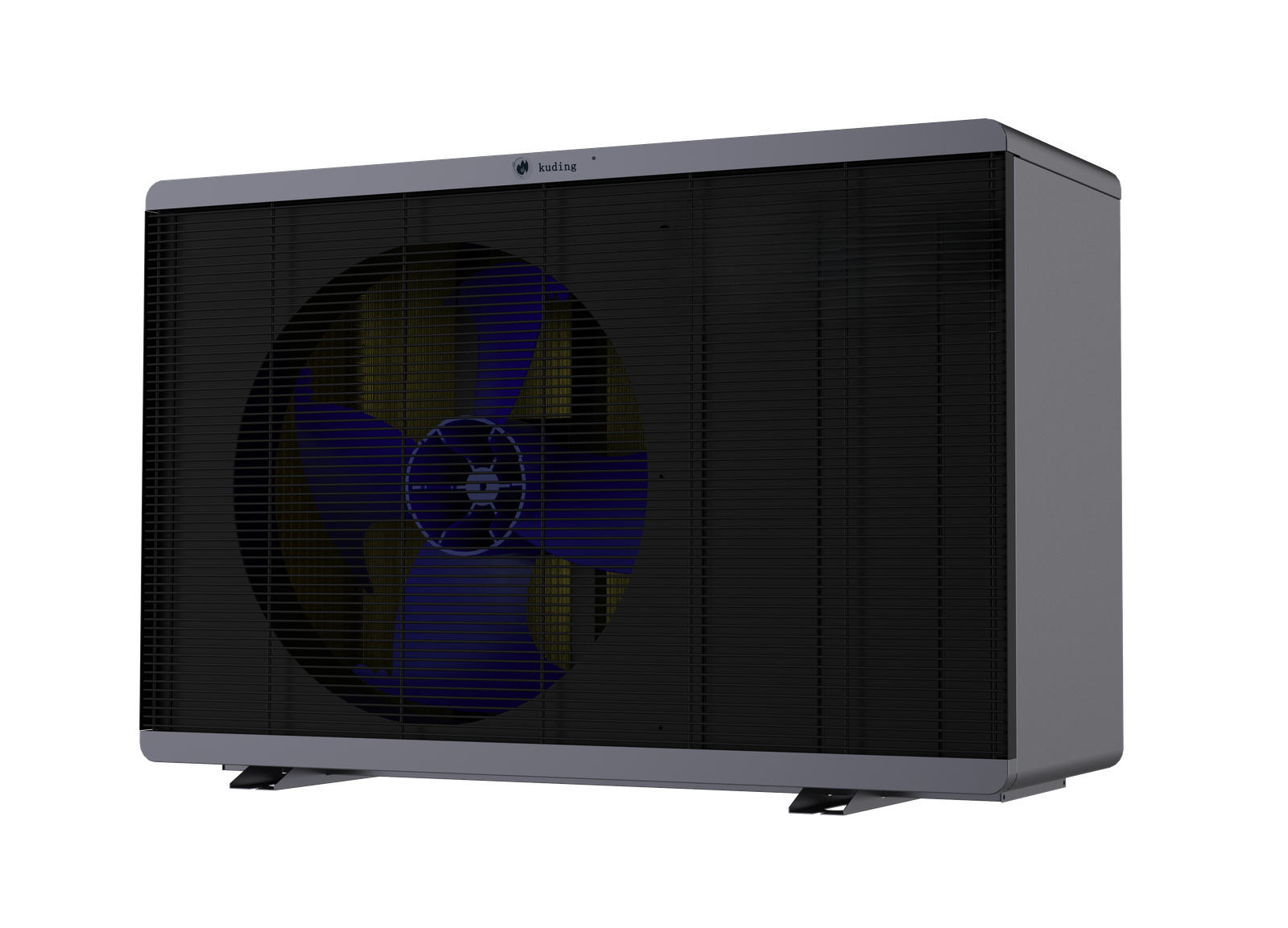

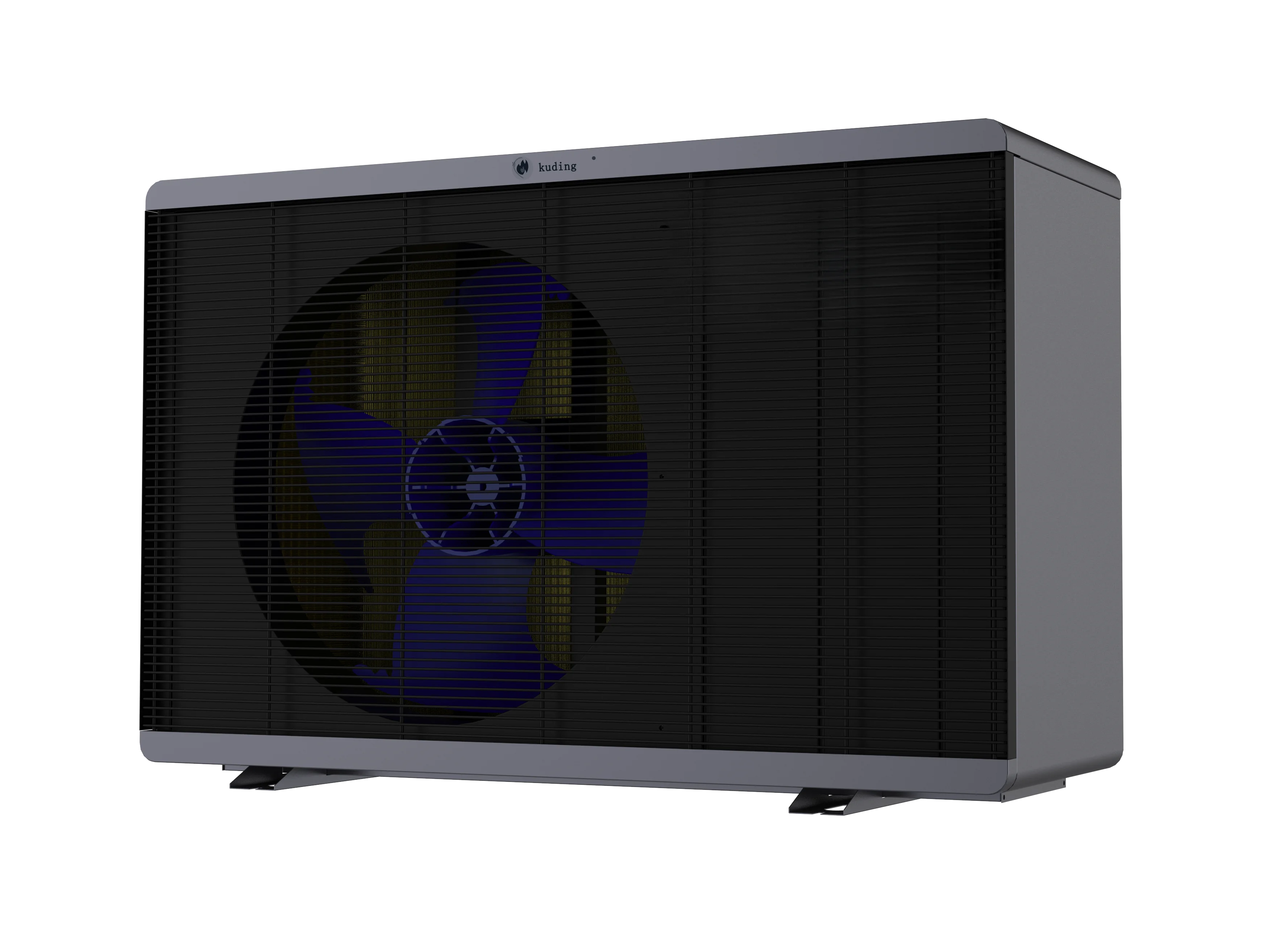

H8A-6 · R290 Helios Pro
Air to Water Heat Pump 6kW — Built-in Hydronic
All-in-one R290 heating heat pump with built-in hydronic module. A+++ energy rating, Mitsubishi Electric compressor, ultra-quiet 42dB. Ready for underfloor heating, radiators, and DHW.
A+++Energy
6kWHeating
42dBNoise
-25°CMin Temp
| Refrigerant | R290 (Propane) |
| Heating Capacity | 6 kW |
| Energy Rating | A+++ (EN 14511) |
| Power Supply | 220–240V / 50Hz / 1Ph |
| Compressor | Mitsubishi Electric |
| Hydronic Module | Built-in (pump, expansion vessel, safety valve) |
| Working Temp | -25°C ∼ 45°C |
| Noise Level | 42 dB(A) |
| Wi-Fi Control | Yes |
| Application | Underfloor, Radiators, DHW, Fan Coil |
R290
View Specs →

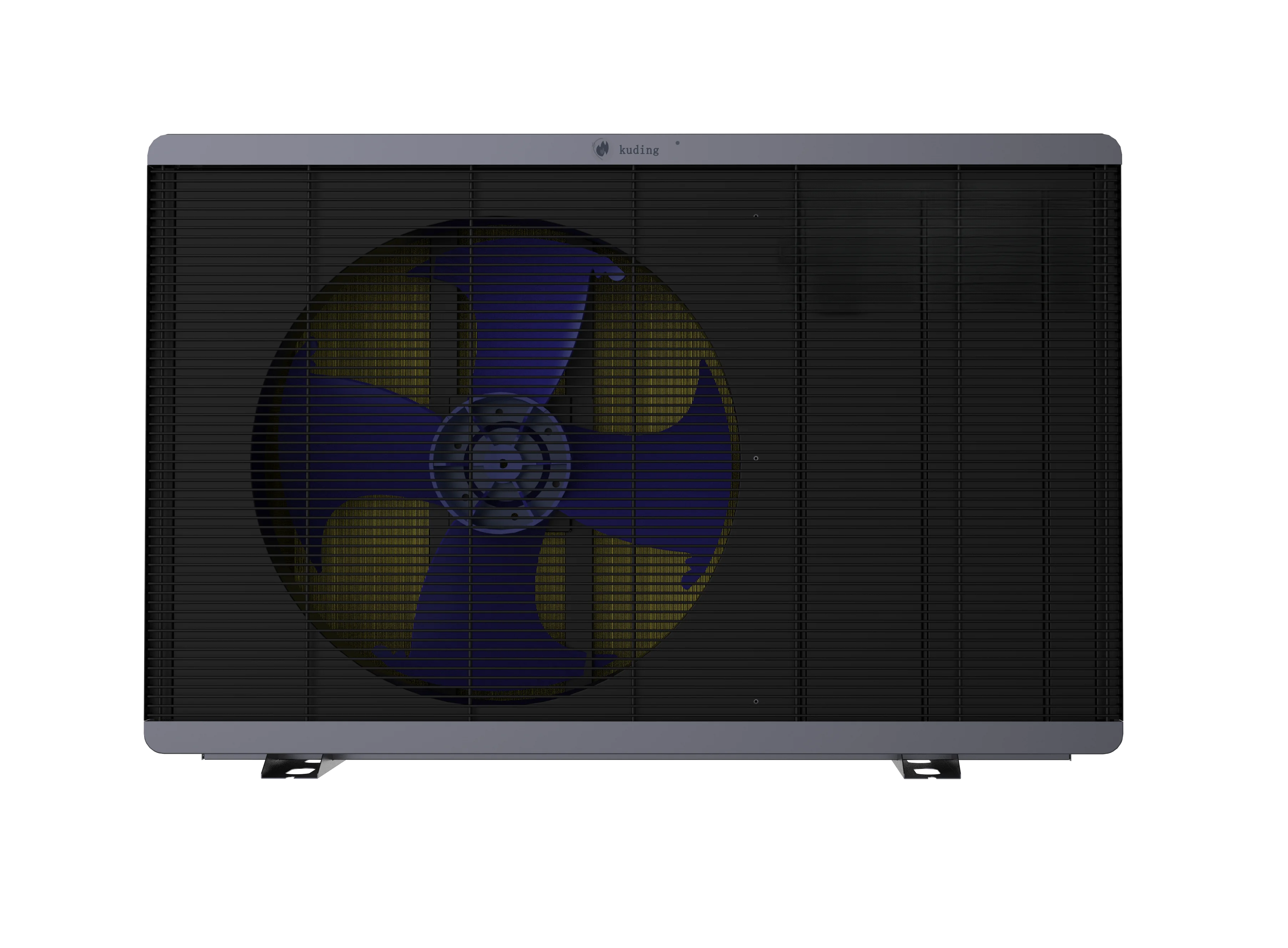

H8A-12 · R290 Helios Pro
Air to Water Heat Pump 12kW — Built-in Hydronic
Higher capacity H8A model with built-in hydronic module. A+++ rated, ideal for medium-large homes with underfloor heating and radiator systems.
A+++Energy
12kWHeating
45dBNoise
-25°CMin Temp
| Refrigerant | R290 |
| Heating Capacity | 12 kW |
| Energy Rating | A+++ (EN 14511) |
| Compressor | Mitsubishi Electric |
| Hydronic Module | Built-in |
H8B R290 Series · Lightweight Design
5 models · A+++ · 6–16kW
R290
View Specs →

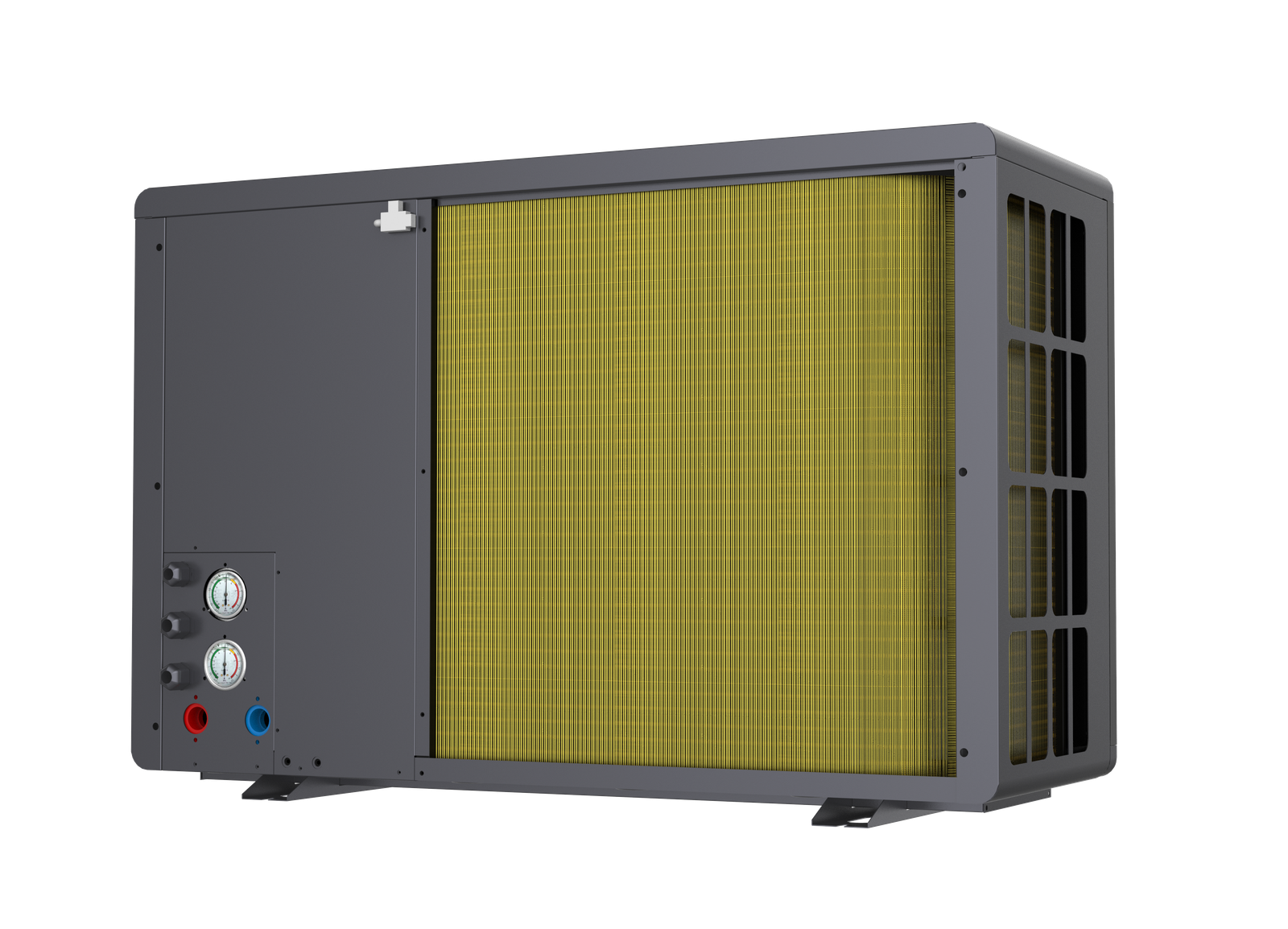

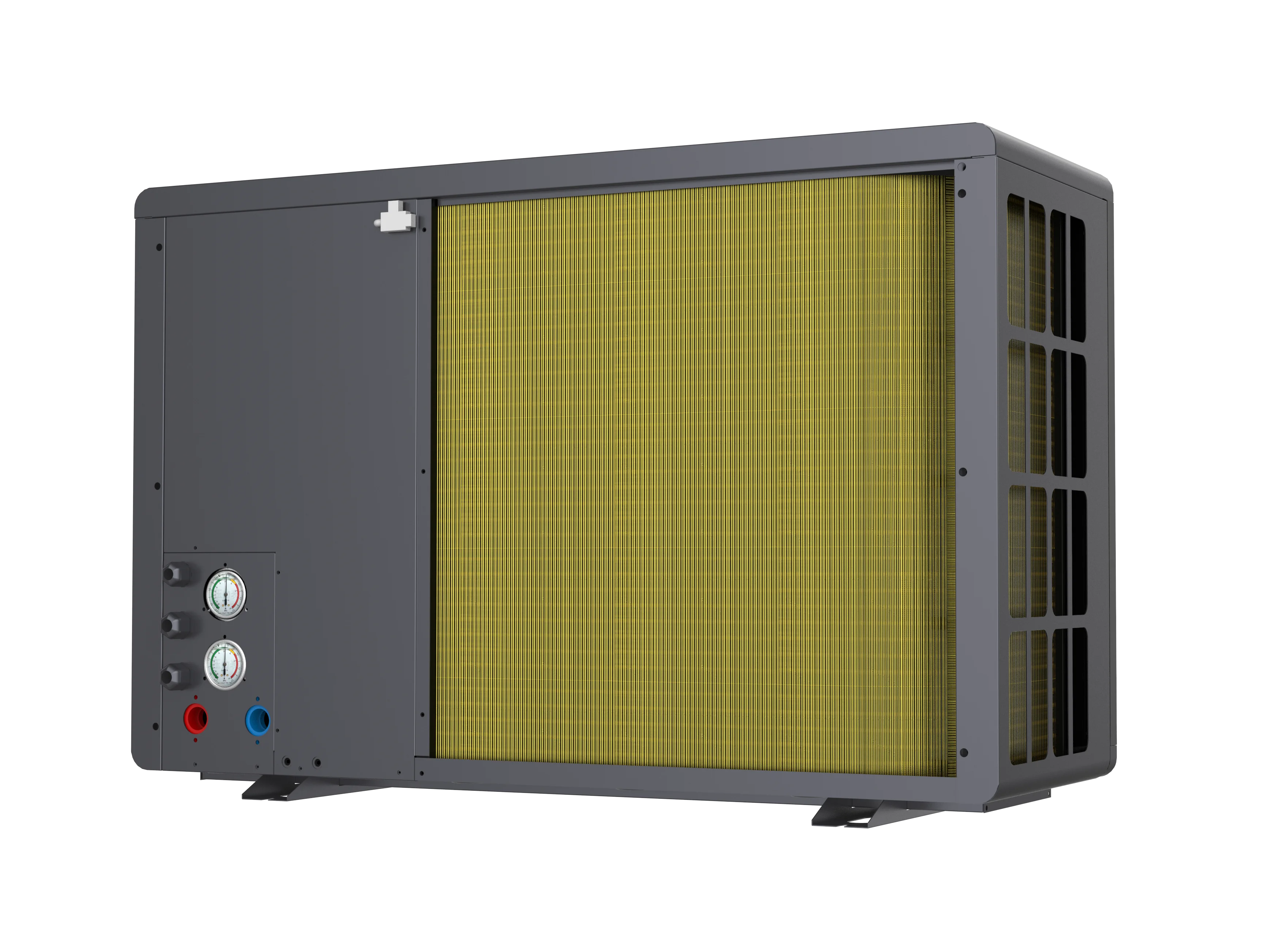

H8B Series · R290 Helios Lite
Air to Water Heat Pump 6–16kW — Lightweight
Lightweight R290 heating heat pump without built-in hydronic module. Easy wall-mounted installation, ideal for retrofit projects. A+++ energy rating with Mitsubishi Electric compressor.
A+++Energy
6–16kWHeating
42dBNoise
-25°CMin Temp
| Refrigerant | R290 |
| Heating Capacity | 6 / 8 / 10 / 12 / 16 kW |
| Energy Rating | A+++ (EN 14511) |
| Compressor | Mitsubishi Electric |
| Hydronic Module | External (not included) |
| Installation | Wall-mounted, lightweight |
| Wi-Fi Control | Yes |
C8 R290 Series · Commercial Cascade
49–92kW · 3Ph · A+++
R290
Commercial
View Specs →

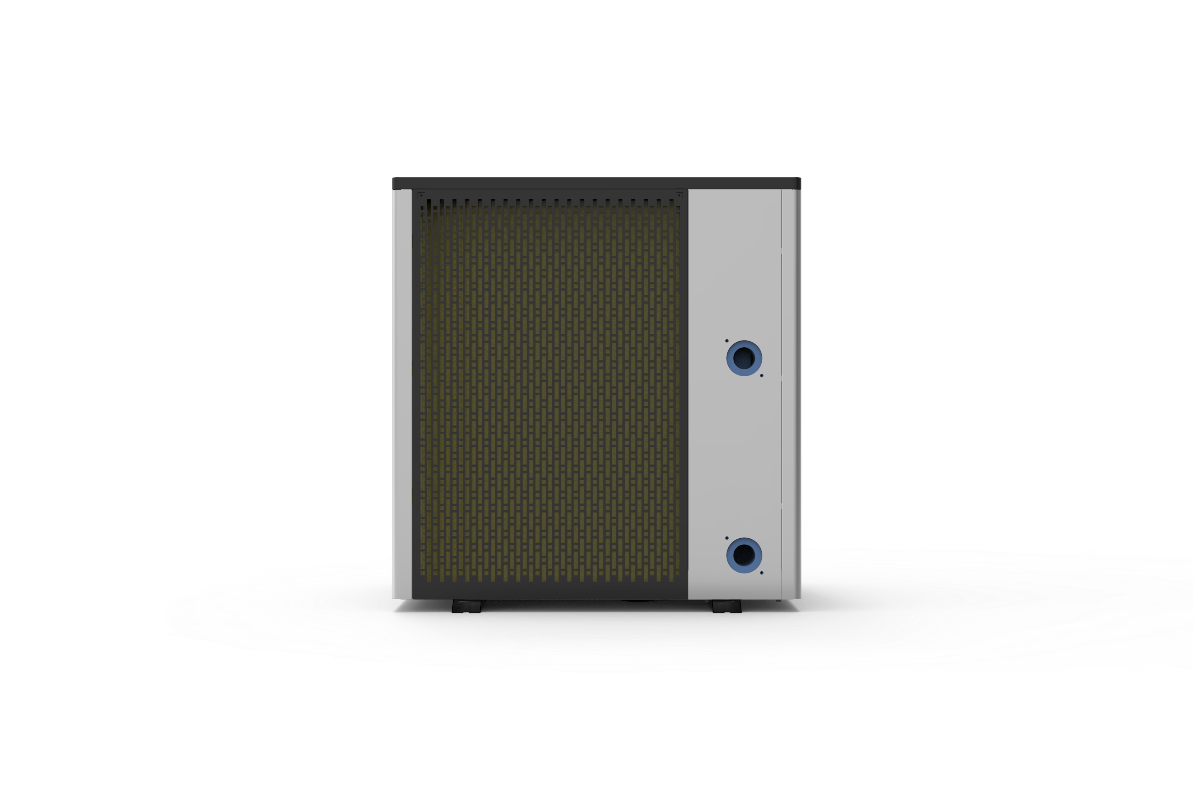

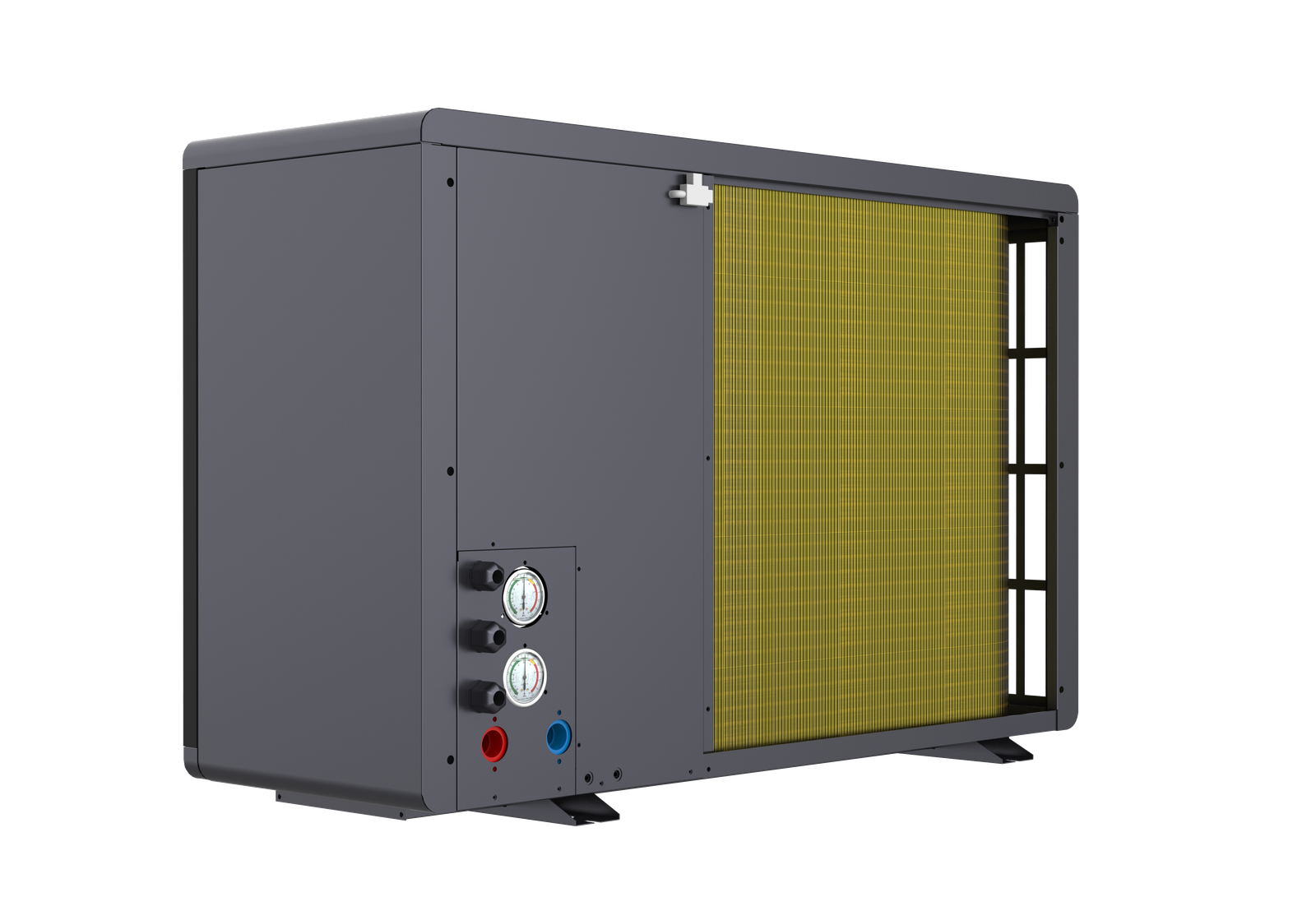

C8 R290 · Commercial Cascade
Commercial Heating Heat Pump 49–92kW
Commercial cascade R290 heating system for large buildings, offices, and hotels. A+++ rated, 49–92kW capacity. Multiple H8 units combined with cascade control for seamless heating.
92kWMax Power
A+++Energy
3PhPower
-25°CMin Temp
| Refrigerant | R290 |
| Total Capacity | 49 / 58 / 67 / 76 / 92 kW |
| Energy Rating | A+++ (EN 14511) |
| System Type | Cascade (multiple H8 units) |
| Power Supply | 380–415V / 50Hz / 3Ph |
| Compressor | Mitsubishi Electric |
| Application | Office, Hotel, School, Hospital |
Hot Water Heat Pumps
All-in-one R290 hot water heat pumps with integrated storage tank. SUS304/316L stainless steel tank, COP up to 4.28, and smart Wi-Fi control. Ideal for residential hot water supply.
AIO R290 Series · All-in-One Hot Water
6 models · 80–300L · COP up to 4.28
R290
AIO
View Specs →

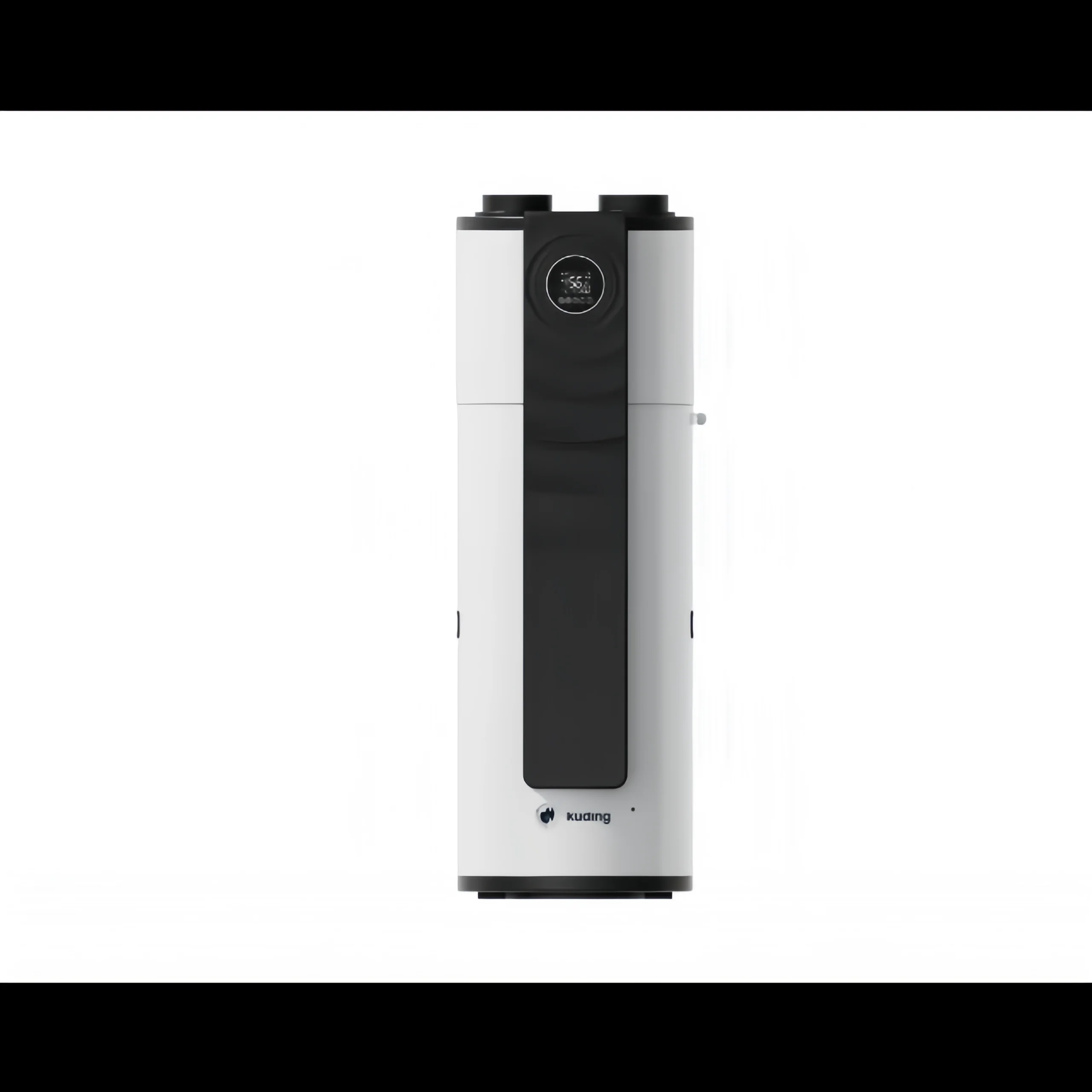

AIO-80 · R290 All-in-One
Hot Water Heat Pump 80L — R290 AIO
Compact all-in-one R290 hot water heat pump with 80L integrated tank. COP 4.28, SUS304 stainless steel tank, ideal for apartments and small families.
COP 4.28Max COP
80LTank
SUS304Tank Material
42dBNoise
| Refrigerant | R290 (Propane) |
| Tank Capacity | 80 L |
| COP | 4.28 |
| Power Supply | 220–240V / 50Hz / 1Ph |
| Tank Material | SUS304 Stainless Steel |
| Max Water Temp | 60°C |
| Wi-Fi Control | Yes |
| Noise Level | 42 dB(A) |
R290
View Specs →
AIO-150 · R290 All-in-One
Hot Water Heat Pump 150L — R290 AIO
Mid-size R290 hot water heat pump with 150L tank. COP 4.10, perfect for 3–4 person families. SUS304 tank with anti-corrosion protection.
COP 4.10Max COP
150LTank
SUS304Tank Material
43dBNoise
| Refrigerant | R290 |
| Tank Capacity | 150 L |
| COP | 4.10 |
| Tank Material | SUS304 |
| Max Water Temp | 60°C |
R290
Popular
View Specs →
AIO-200 · R290 All-in-One
Hot Water Heat Pump 200L — R290 AIO
Large-capacity R290 hot water heat pump with 200L SUS316L tank. COP 3.88, premium corrosion resistance. Ideal for 4–6 person households.
COP 3.88Max COP
200LTank
SUS316LTank Material
44dBNoise
| Refrigerant | R290 |
| Tank Capacity | 200 L |
| COP | 3.88 |
| Tank Material | SUS316L Stainless Steel |
| Max Water Temp | 60°C |
R290
View Specs →
AIO-300 · R290 All-in-One
Hot Water Heat Pump 300L — R290 AIO
Maximum capacity R290 hot water heat pump with 300L SUS316L tank. COP 3.90, suitable for large families and light commercial use.
COP 3.90Max COP
300LTank
SUS316LTank Material
45dBNoise
| Refrigerant | R290 |
| Tank Capacity | 300 L |
| COP | 3.90 |
| Tank Material | SUS316L Stainless Steel |
| Max Water Temp | 60°C |
Commercial Solutions
Heavy-duty heat pump systems for commercial pool heating and building heating. R410A pool units up to 190kW and R290 cascade heating systems up to 92kW. Custom OEM/ODM available.
Commercial Pool Heating · R410A C8
26–190kW · 10 models · 3Ph
R410A
Commercial
View Specs →
C8 Series · R410A Commercial Pool
Commercial Pool Heat Pump 26–190kW
Industrial-grade R410A pool heat pumps for commercial installations. Pure titanium heat exchanger handles aggressive pool chemistry. 10 models from 26kW to 190kW.
190kWMax Power
10Models
3PhPower
TitaniumExchanger
| Refrigerant | R410A |
| Capacity Range | 26 / 32 / 40 / 50 / 65 / 80 / 100 / 130 / 160 / 190 kW |
| Power Supply | 380–415V / 50Hz / 3Ph |
| Heat Exchanger | Pure Titanium |
| Application | Hotel, Resort, Water Park, Public Pool, Olympic Pool |
| Custom OEM/ODM | Available |
R410A
View Specs →
C8 Multi-Unit System
Modular Pool Heating System — Scalable
Modular multi-unit pool heating system with master-slave control. Combine 2–10 C8 units for total capacity up to 1900kW+. Redundant design ensures zero downtime.
1900kW+Max Total
2–10Units
Master-SlaveControl
Commercial Heating · R290 C8 Cascade
49–92kW · A+++ · 3Ph
R290
Commercial
View Specs →

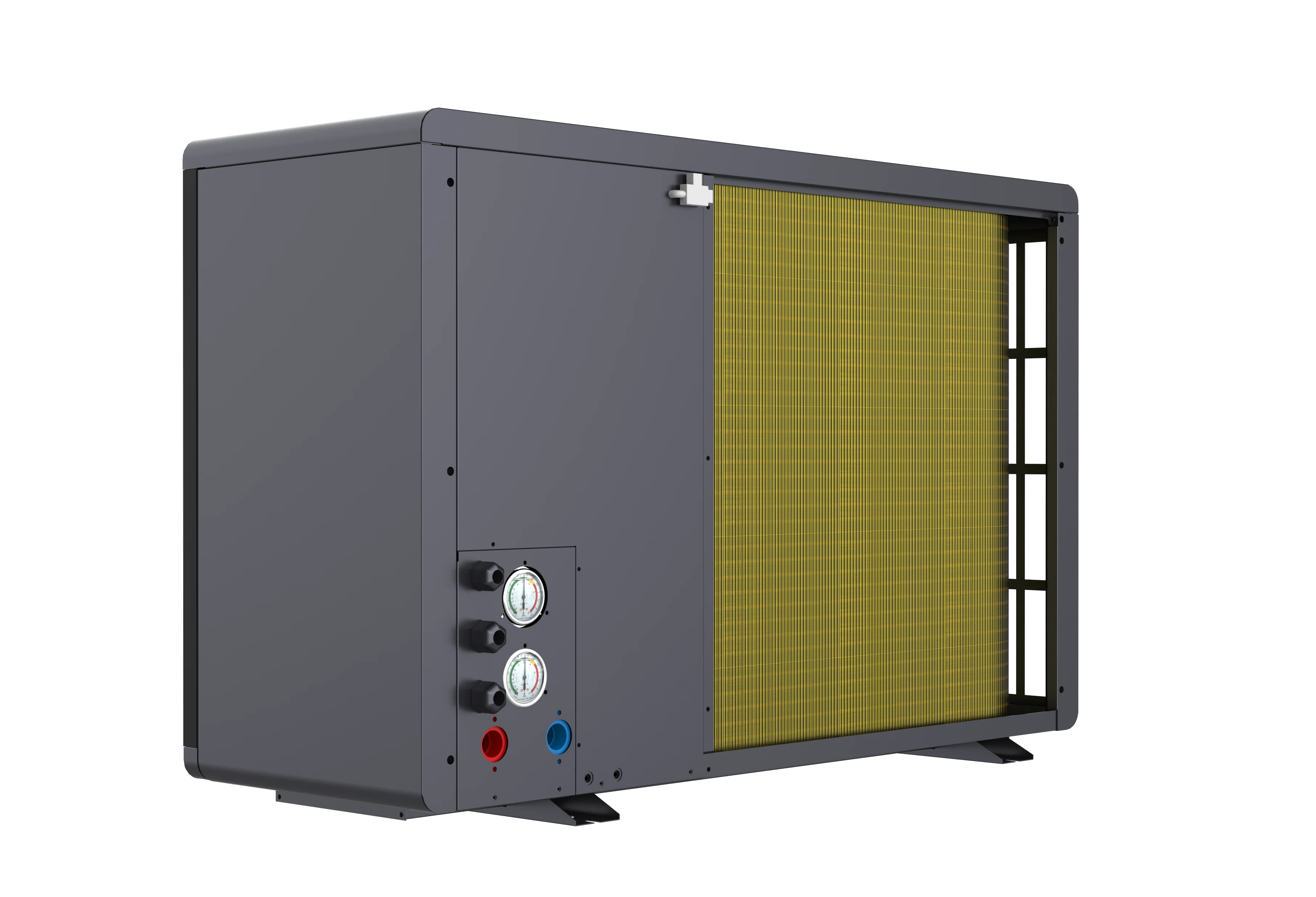

C8 R290 Cascade · Commercial Heating
Commercial Heating System 49–92kW
R290 cascade heating system for commercial buildings. A+++ rated, combines multiple H8A/H8B units with cascade controller. Perfect for offices, hotels, schools, and hospitals.
92kWMax Power
A+++Energy
-25°CMin Temp
3PhPower
| Refrigerant | R290 |
| Total Capacity | 49 / 58 / 67 / 76 / 92 kW |
| Energy Rating | A+++ (EN 14511) |
| System Type | Cascade (multiple H8 units) |
| Compressor | Mitsubishi Electric |
| Application | Office, Hotel, School, Hospital, Apartment |
| Custom OEM/ODM | Available |
R290
📦
Custom OEM/ODM
Tailored solutions for your project
Custom Solution
OEM/ODM Custom Heat Pump
Need a custom heat pump solution? We offer full OEM/ODM services with your branding, custom specifications, and tailored packaging. MOQ negotiable for bulk orders.
CustomSpec
Your BrandOEM/ODM
FlexibleMOQ
